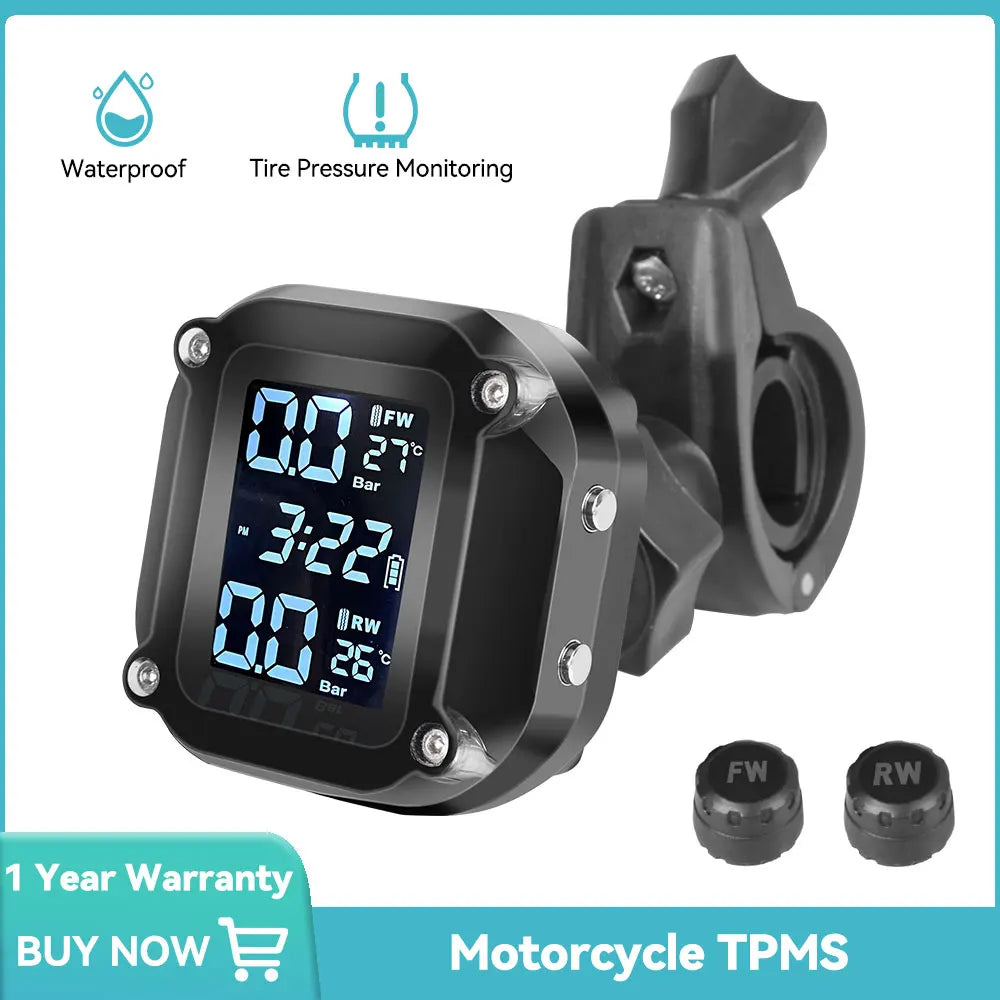

Motorcycle Tire Pressure Monitoring System

Motorcycle TPMS

Features

• Accurately monitor tire pressure all the way.

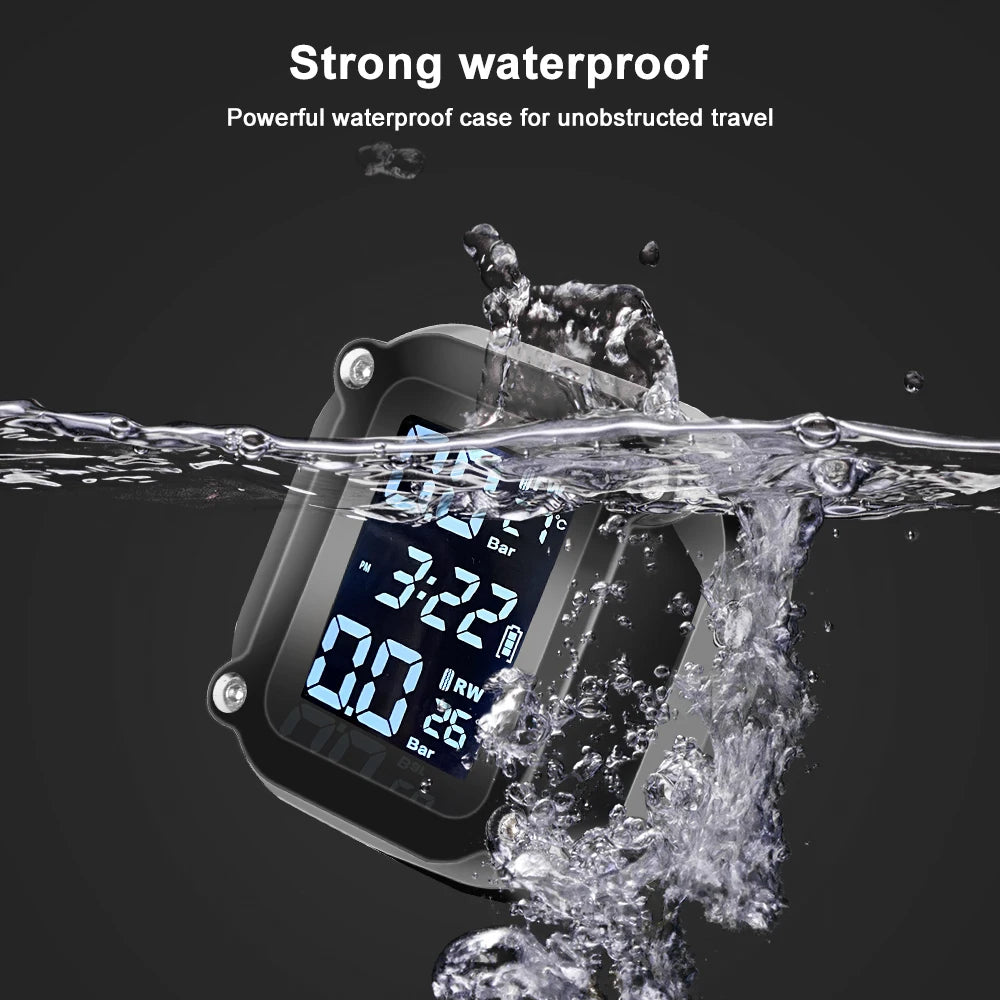

• IPX65 waterproof level sensors & monitor, Anti-rust & Durable

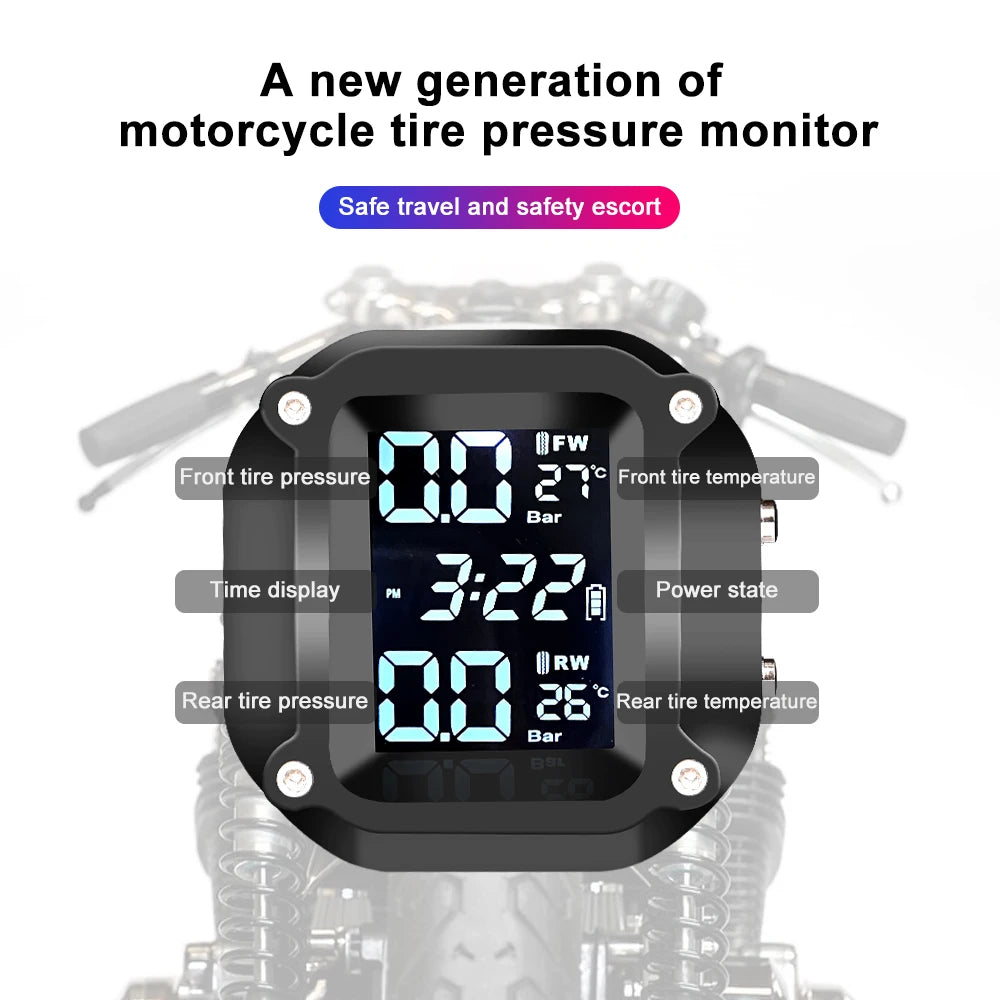

• High precision LCD screen with time display, Clearly visible during the day and night

• The tire pressure units Psi and Bar can be switched arbitrarily

• Built-in 1100 mAh battery

• Magnetic USB charging port design for fast charging of monitor at any time

• The Monitor automatically power ON & OFF, Power saving

• Long receiving distance, stable signal

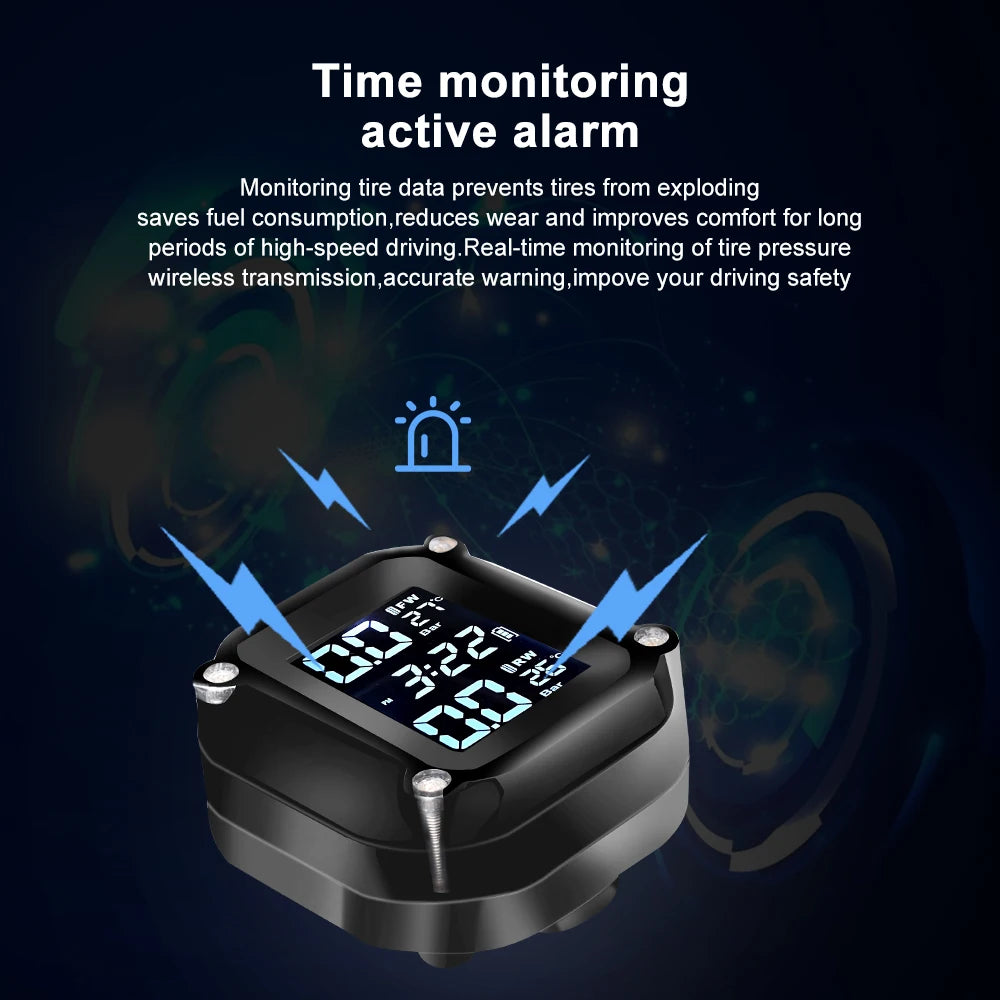

• Real-time monitoring of tire pressure & temperature

• 5 kinds of abnormal alarms to protect tires and drive safety

① High-pressure alarm

② Low-pressure alarm

③ High-temperature alarm

④ Air leaking alarm

⑤ Sensor low battery alarm

Product Description

• Brand: PECHAM

• Item Type: Smart Motorcycle Tire Pressure Monitoring System

• Model: CC0700

• Pressure Range: 0~6.6bar

• Working Temperature:

 - 20℃ ~ - 75℃ ( Monitor )

 - 30℃ ~+85 ℃ ( External Sensor )

• Pressure Accuracy: ± 0.1 bar/± 1.5 psi

• Temperature Accuracy: ± 3℃

• Sensor transmission frequency: 433.92MHz

• Battery Replaceable: Yes

• Material: ABS + PC

• Transmitting power: <10dB

• Waterproof Level: IPX65 ( Monitor & Sensors )

Bracket installation instructions:

1. Unscrew the 2 screws, put on your motorcycle/electric bike/bicycle and tighten;
2. Place the mounting head of the bracket toward the position you need, and confirm that the bracket is firm;
3. Install the tire pressure receiver on the bracket, tighten it and then lock it; use the ball head to rotate the tuning knob to move the joint to adjust the appropriate angle.

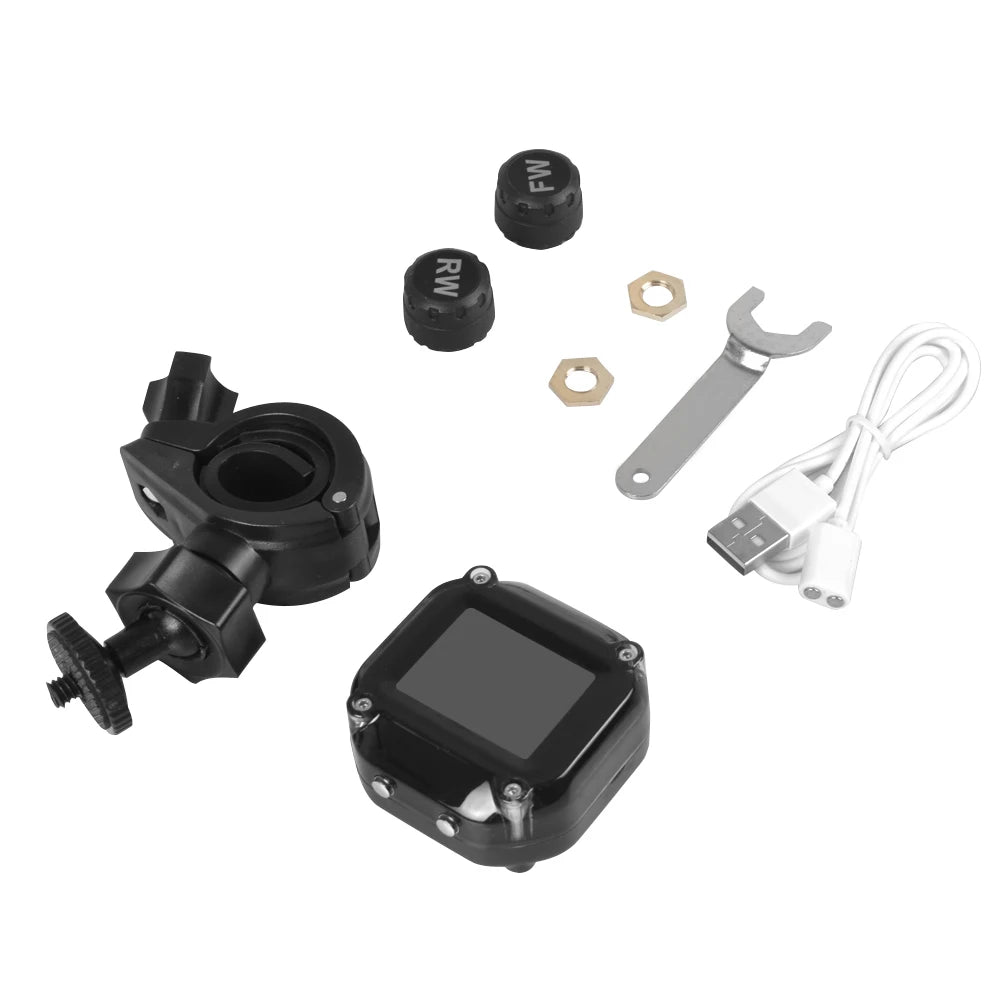

Package includes

1 X Monitor

1 X USB Cable

1 X Bracket

2 X Sensors

1 X Wrench

2 X Anti-theft Nut
